Mainly applied to: artificial intelligence, deep learning, high-performance computing, computational animation and modeling, design and visualization, 3D rendering, VDI, AI deep learning training
| Ultimate performance meets critical application requirements | Supports 2 AMD EPYC 9004 series processors, adopts a new Zen 4 core architecture, 5nm new technology, supports up to 400W models, and has strong computing performance; It supports 24 DDR5 memories with a frequency up to 4800MHz, providing excellent Memory bandwidth and capacity |
High scalability and flexible configuration | Hardware module decoupling design enables flexible configuration of computing, storage, and network to meet different business needs; Support flexible selection of 3.5 "or 2.5" hard disk modules, with a maximum support of 8 U2 NVMe; Supports 10 full height, full length, and double width GPU cards, and supports training and inference GPUs; Supports OCP NIC 3.0 network expansion, optional extension 4 × 1GbE/2 × 10Gb SFP+/4 × 10Gb SFP+/2 × 25Gb SFP28 network configuration |
Stable, reliable, and intelligent management | The key components of the system are designed with redundancy and hot swapping, while supporting tool free disassembly and assembly to improve fault maintenance efficiency and system availability; Integrated intelligent management chip, providing an open management platform, supporting multiple management protocols such as IPMI2.0, Redfish, SNMP, etc; Supporting various management functions such as remote KVM, virtual media, critical component status monitoring, and abnormal alarms, achieving comprehensive remote system level intelligent management |

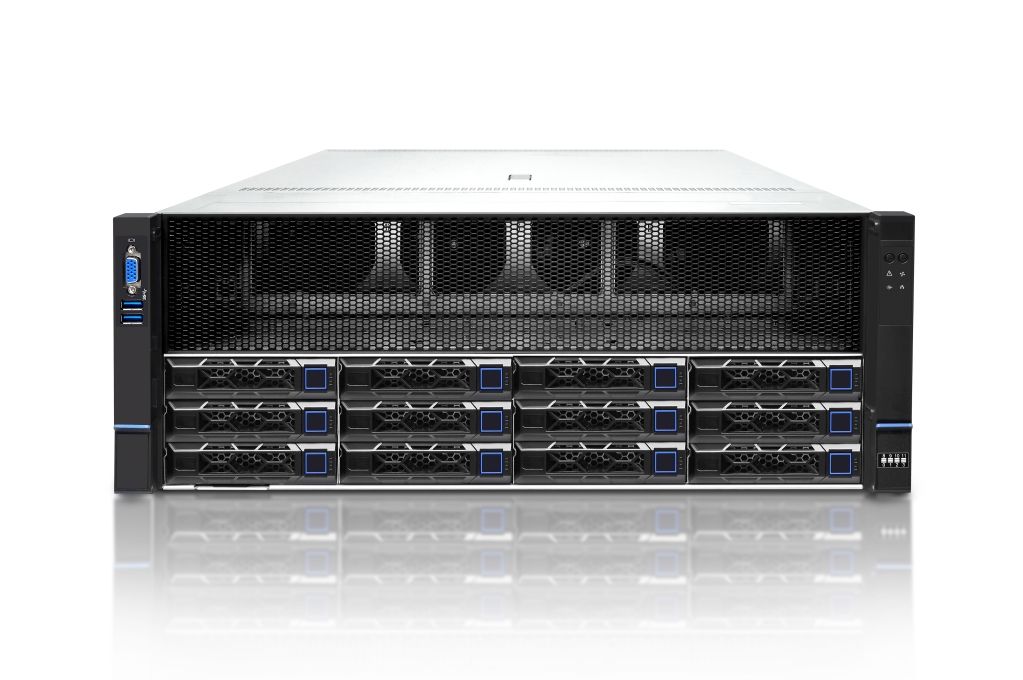

| Functional | 4124G-NQ3 Technical Specifications |
| Form | 4U8 Card - Direct |
| Processor | 2 AMD EPYC 9004 series processors with a maximum power of 400W |
| Memory | 24 DDR5 memory slots, each CPU supports 12 memory channels, supporting up to 4800MHz Support for RDIMM/3DS RDIMM |
| Storage controller | Optional support for 12Gb/s SAS HBA and 12Gb/s SAS RAID controller |
| Local storage | Supports 8/12 3.5-inch hard drives |
| PCIe extension | Option 1: Supports 8 full height, full length, and dual width PCIe 5.0 GPU cards |
| Optical drive | Supports USB optical drive |
| Network | 1 1Gb RJ45 dedicated management network port |
Port | Front end: 1 VGA, 2 USB 3.0 Post: 1 VGA, 2 USB 3.0, 1 RJ45 management network port, 1 COM |
| Management function | Integrated BMC management chip, supporting functions such as IPMI2.0, Redfish, SOL, KVM, virtual media, etc |
| Security | Optional TPM/TCM security module, intrusion detection when opening the chassis cover, and locking the upper cover of the chassis |
| Power | Can be configured with 4 power modules, supports N+1 redundancy, and supports hot swapping |
| Fan | 4 hot-swappable fan modules, supporting N+1 redundancy, intelligent speed regulation, and abnormal alarm |
| Chassis size | 2.5 "hard drive chassis size, width 448x height 175x depth 772mm (including ear hook 792mm) |
| Working temperature | 0 o C -35 o C (without direct light) |
| Support operating system | Supports mainstream operating systems such as Microsoft Windows Sever, Red Hat Enterprise Linux, Ubuntu Linux, CentOS, etc Please consult sales personnel for specific versions |
