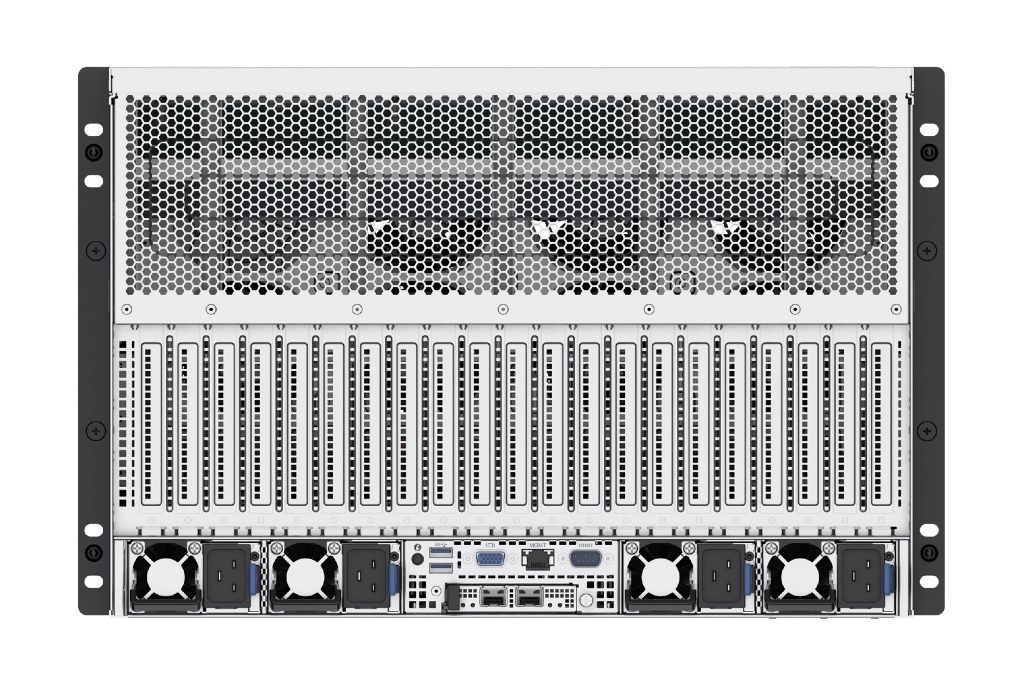

The 7124G-NQ3 is a versatile 8-GPU server built on the AMD SP5 processor platform, supporting 9004/9005 series CPUs and 8 triple-fan graphics cards. With exceptional performance, strong scalability, a
| Exceptional Performance High Value | Supports dual AMD EPYC? 9004/9005 series processors with a maximum TDP of 500W; |
| Native Triple-Fan GPU Support | Supports Native Triple-Fan GPU Cards; OEM-Quality Assurance | Higher Cost-Effectiveness |
| Modular Scalability · On-Demand Customization | Supports up to 11 PCIe 5.0 standard slots, with multiple PCIe configurations to choose from; Optional 1 OCP 3.0 network card, multiple speed options available; Supports 8 3.5 "/2.5" SAS/SATA hard drives, with the option to support 2/4 NVMe SSDs, balancing large capacity and high-performance local storage. |
| Stable, reliable, and intelligent management | The key components of the system are designed with redundancy and hot swapping, and support tool free disassembly and assembly to improve fault maintenance efficiency and enhance system availability; Integrated intelligent management chip, providing an open management platform that supports multiple management protocols such as IPMI2.0, Redfish, SNMP, etc; Support various management functions such as KVM, virtual media, critical component status monitoring, abnormal alarm, etc., with comprehensive remote system level intelligent management capabilities. |
| characteristic | 7124G-NQ3 Technical Specifications |
| Form | 7U rack server |
| Processor | Supports 2 AMD EPYCs ? 9004/9005 series processors, maximum power 500W |
| Memory | Supports 24 DDR5 memory slots, 1DPC, up to 6400MT/s |
| RAID | Optional support for 12Gb/s SAS HBA or RAID card |
| GPU | Supports 8 GPUs (three fan version, TDP 600W) |
| PCIe Expansion | Supports up to 11 standard PCIe 5.0 slots Optional support for 1 OCP 3.0 network card, PCIe 5.0 x8， Optional 4x1GbE/2x10Gb SFP+/2x25Gb SFP28 or other standard OCP 3.0 network cards |
| Local Storage | Supports 8 3.5 "/2.5" SAS/SATA hard drives (optional support for 2/4 U.2 NVMe SSDs) 1 M.2 SSD, 2280&22110 sizes, supports PCIe 3.0 x4 |
| I/O ports | Front end: 2 USB 3.0 ports, 1 VGA port Rear: 1 serial port, 2 USB 3.0 ports, 1 VGA port, 1 RJ45 management port |
| Fan | Heat dissipation optimization design, 12 8056 high-speed fans, supporting hot swapping and redundancy |
| Power supply | 4 CRPS power modules can be configured, supporting hot swapping and 2+2/3+1 redundancy modes Optional 2000W/2700W/3200W/3600W Optional Platinum or Titanium Power Modules |
| Management function | Integrated BMC management chip AST2600, supporting IPMI2.0 Redfish、SOL、KVM、 Virtual media and other functions Provide 1 1Gbps RJ45 dedicated management port |
| Safety function | Optional TPM security module, supporting intrusion detection when opening the chassis cover and locking the chassis cover (tool free) Support BMC dual flash redundancy design |
| Temperature | Working temperature: 5 o C -35 o C Storage temperature:- 40oC - 65oC |
| Size | Width 448mm x Height 306mm x Depth 886mm (including hanging ear 924mm) |
| Humidity | Relative humidity at work: 8% to 90% (without condensation) Storage relative humidity: 5% to 95% (non condensing) |
| Operating system support | Support mainstream operating systems such as Microsoft Windows Server, Red Hat Enterprise Linux, CentOS, Ubuntu, etc |
